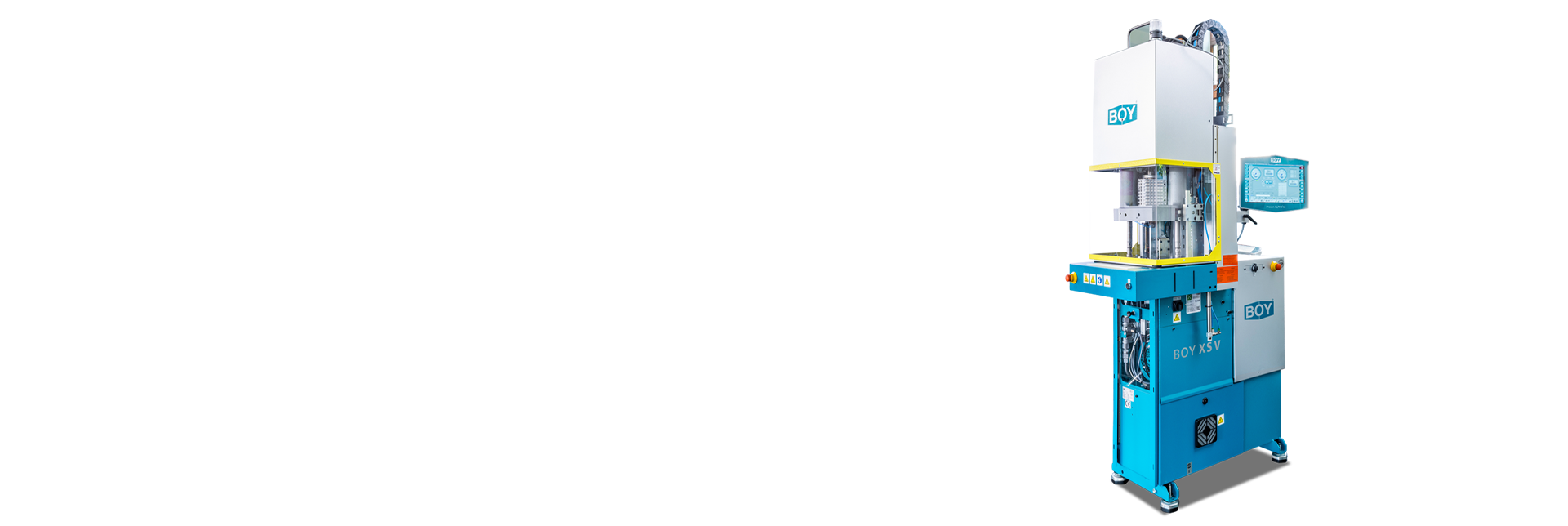

BOY XS V – Vertical Injection molding Machine for Automated Overmolding
Smallest BOY Molding Machine for High-Precision Results
The BOY XS V is a compact vertical injection molding machine with a vertical injection and clamping system. It is perfect for overmolding metal parts, semi-finished components, or cable ends. The fixed lower clamping unit prevents slippage during mold closure, ensuring high-precision injection molding.
Versatile, Automatable & Easily Integrated
With its two-platen clamping system and diagonally arranged tie bars, the BOY XS V offers excellent accessibility from all sides and integrates seamlessly into automated production lines.
Highlights
- Insert molding machine
- Clamping and injection units vertically arranged
- Ultra-compact
- Only 1076 in² footpring
- 11.24 US Tons clamping force
- Perfect for Micro-injection
- Maximum efficiency
- Lower energy demand
- Ideal for long term operation
- Flexible use of molds
- Comfortable operation
- Procan ALPHA® 4 control
- Easy automation
- Worldwide service
Technical data
- Euromap Size:
100-3 / 100-14 - Screw Diameter:
8, 12, 14, 16 mm - Max. Stroke Volume:
0.93 in³ (theoretical) - Injection Volume Flow:
3.1 in³/s - Max. Spec. Injection Pressure:
45368 psi - Max. Daylight Between Platen:
9.84 in - Max. Opening Stroke:
5.91 in - Distance Between Tie Bars:
8.07 in
